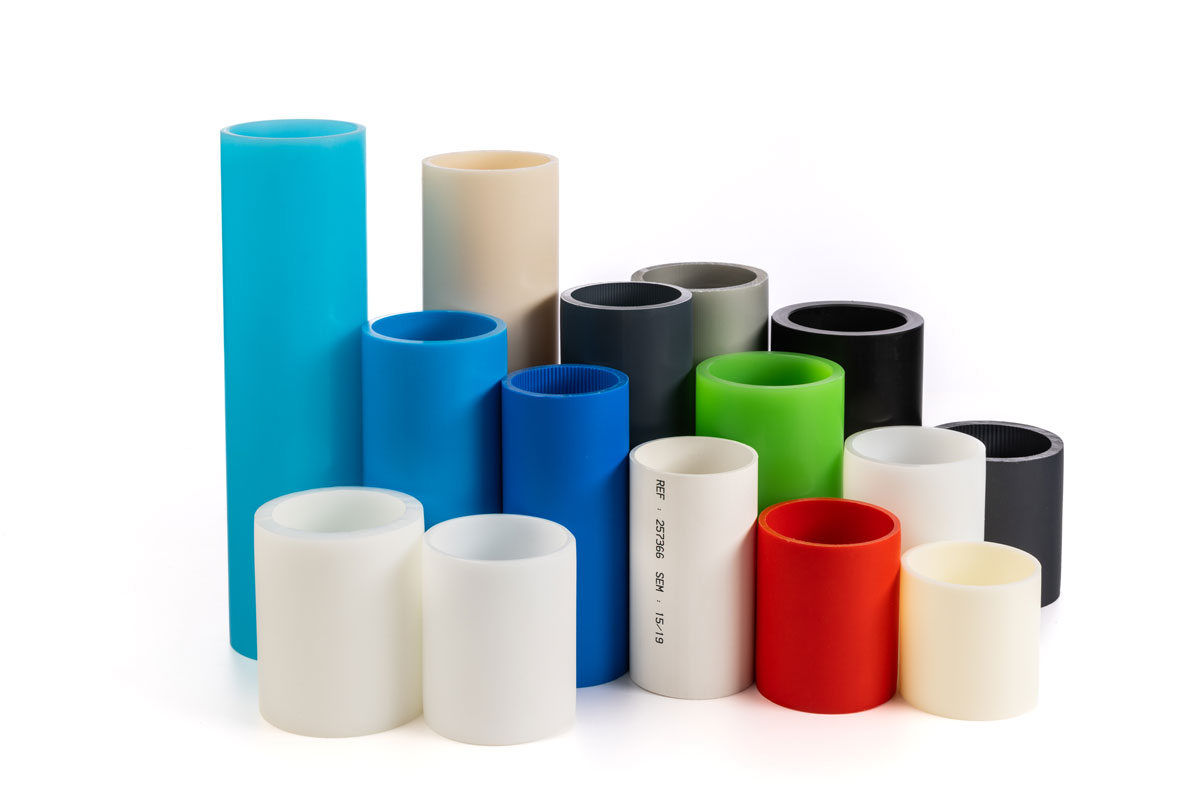

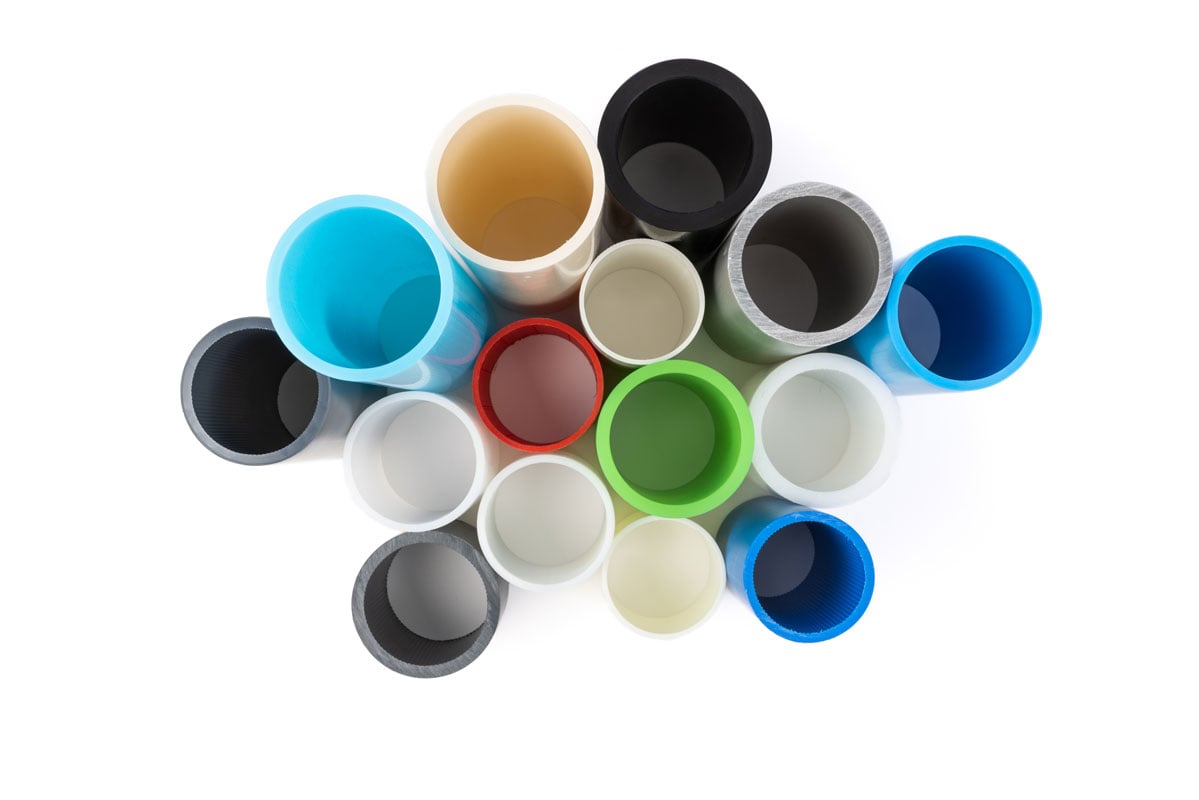

Custom plastic winding cores

Plastic core extrusion

With more than 50 years of expertise, ABI Profils is a leading manufacturer of technical plastic cores.

We design and produce custom winding cores in a wide range of polymers to meet the most demanding mechanical, thermal, aesthetic and environmental requirements.

Each product is developed on the basis of a documented quality analysis and fully meets your specifications.

Applications

Applications for plastic winding cores

Our extruded cores are used in many industries:

  • Food and pharmaceutical industries: our HDPE and high-impact polystyrene (HIPS) cores comply with European food-contact regulations and are chemically inert.
  • Medical: made from sterile, high-performance materials suitable for sensitive, hygiene-critical applications.
  • Electronics: ABS and PVC cores provide excellent thermal and electrical insulation, ideal for winding or protecting components.
  • Packaging: our cores give even winding of plastic films, tapes or paper and stay strong and stable during transport and storage.
  • Thermal transfer: designed specifically for thermal transfer ribbons (TTR), our cores give perfectly consistent winding and long-term dimensional stability. Their high mechanical strength and calibrated surface prevent slippage, for the best possible print quality.
  • Adhesive coating and lamination: our extruded cores give controlled, uniform adhesion in coating, laminating and adhesive application processes. Their calibrated, consistent surface allows smooth unwinding with no bubbling or lifting. Anti-static or surface-treated versions are available for use with technical adhesives.

See what we make for each industry on our Application sectors page.

Specifications

Technical specifications

  • Inside diameter: Ø 76 to Ø 102 mm (other diameters on request)
  • Bore: smooth or grooved
  • Core length: cut in line from 100 mm to 4,000 mm
  • Materials: PVC, PP, HDPE, mineral-reinforced HDPE (HDPE R Mineral C), ABS, PS, etc.

These cores can be customised to your tolerance, finish and performance requirements.

Materials

Materials and technical properties

At ABI Profils, each polymer is selected according to your operating constraints, environment and regulatory requirements:

  • PVC (polyvinyl chloride): versatile, robust and insulating, with excellent chemical and weather resistance; ideal for outdoor and electrical applications.
  • PP (polypropylene): light, recyclable and highly resistant to chemicals and heat; recommended for demanding thermal and chemical environments.
  • HDPE (high-density polyethylene): excellent impact and abrasion resistance; ideal for industrial applications that need rigidity and durability.
  • Mineral-reinforced HDPE (HDPE R Mineral C): a formulation with mineral fillers (carbonate, silica) for greater rigidity and dimensional stability; suited to harsh industrial environments.
  • ABS (acrylonitrile butadiene styrene): combines an attractive finish, mechanical strength and thermal stability; suited to robust applications where appearance matters.
  • PS (high-impact polystyrene): rigid, economical and impact-resistant; widely used in the food, electronics and medical industries.

With this multi-material expertise, ABI Profils adapts every plastic core to your specific requirements: strength, light weight, conductivity or food-contact compliance.

Manufacturing and quality

Manufacturing and quality control

Our plastic cores are made by extrusion, for uniformity, precision and long-term durability.

The material is melted and homogenised, then extruded through a die to obtain the required geometry.

  • 15 single- and twin-screw extrusion lines
  • Flexible, traceable production
  • Continuous quality control based on our product development files and documented quality analyses
  • Industry 4.0 approach with automated monitoring and energy optimisation

Every production batch is traceable and inspected, under our ISO 9001 and ISO 14001 certified management systems.

Find out more about our extrusion lines on the Production equipment page.

Request the technical datasheet

Download datasheet
I agree that my data may be processed in accordance with our privacy policy

How we develop your custom cores

Every core project follows a rigorous, controlled process:

  1. Product development file covering all project specifications
  2. 2D/3D design and modelling
  3. Project planning and management
  4. Documented product quality analysis
  1. Prototyping and material validation
  2. Die and tooling manufacture
  3. Pre-production run and scale-up to volume production
  4. Quality monitoring and compliance

Our teams work alongside each customer from concept to production, taking a structured co-development approach.
